Aspose.OMR for Java 25.8.0 - Release Notes
What was changed
| Key | Summary | Category |
|---|---|---|
| OMRJAVA‑116 | Improved handling of rotated images by adding an extra positioning marker to the form. See Changes in application logic for important details on backward compatibility. | Enhancement |
| OMRJAVA‑116 | Additional rectangles on a scanned or photographed OMR form no longer interfere with the positioning markers. SeeImproved positioning marker detection | Enhancement |
Public API changes and backwards compatibility
This section lists all public API changes introduced in Aspose.OMR for Java 25.8.0 that may affect the code of existing applications.
Added public APIs:
The following public APIs have been added in this release:
com.aspose.omr.RotationPointPosition enumeration
List of all supported positions for new rotation reference point. By default TopRight1 is used. See Changes in application logic, List of positions
com.aspose.omr.ReferencePointsSettings class
New class that will store reference point(or positioning markers) settings. At the current moment - only position of rotation reference point.
com.aspose.omr.GlobalPageSettings.ReferencePoints field
New field that will store settings for reference points.
Updated public APIs:
No changes.
Removed public APIs:
No changes.
Changes in application logic
This section lists any changes to the program architecture and form processing algorithms introduced in Aspose.OMR for Java 25.8 that may affect the behavior of existing applications.

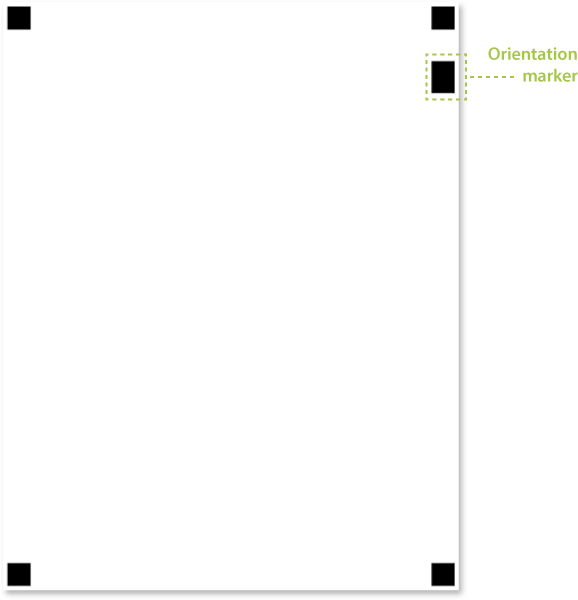

Additional positioning marker
BACKWARD INCOMPATIBILITY!
Forms generated with Aspose.OMR for Java 25.8 cannot be recognized with Aspose.OMR for Java 25.7 and below and vice versa.
To improve and speed up the processing of rotated scans of photos, a new positioning marker has been added. Exact position can be changed based on GlobalPageSettings. For example, to the upper right corner of printable OMR form.
All forms generated with previous versions of Aspose.OMR for Java (that lack that extra marker) will not be recognized by Aspose.OMR for Java 25.8. The following error will be returned: “Unable to detect rotation rectangle. Since version 25.8 we use 5 reference points. Please generate template using latest version.”".
Previous versions of Aspose.OMR for Java may be able to process forms generated with Aspose.OMR for Java 25.8, but recognition results are not guaranteed to be correct.

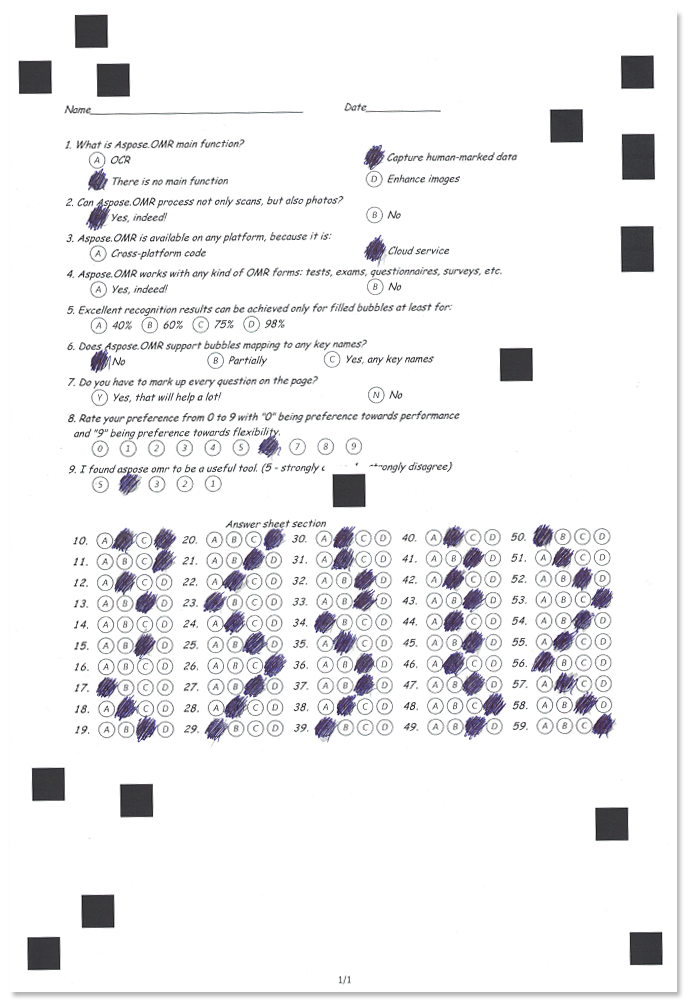

Improved positioning marker detection
Compatibility: fully backward compatible.
This change will not affect existing code, print forms, or recognition results.
The algorithm for detecting OMR form positioning markers has been significantly improved. Now it can filter out additional elements on the form that might otherwise be mistaken for a position marker.
Usage examples
Check the examples below to learn more about the changes introduced in this release:
Generating template with a rotation reference point on the bottom left corner
OmrEngine engine = new OmrEngine();
GlobalPageSettings settings = new GlobalPageSettings();
settings.BubbleColor = DrawingColor.Red;
settings.PaperSize = PaperSize.Letter;
settings.FontFamily = "Arial";
//new location for rotation reference point
settings.ReferencePoints.RotationMarkerPosition = RotationPointPosition.BottomLeft1;
InputStream markupStream = new FileInputStream("C:\\Users\\User\\templates\\math.txt");
GenerationResult result = engine.generateTemplate(markupStream, settings);
// save generation result: image and .omr template
result.save("C:\\Users\\User\\templates\\", "math");
List of rotation point positions
| Enum | Position |
|---|---|
| RotationPointPosition.BottomLeft1 |  |
| RotationPointPosition.BottomLeft2 |  |
| RotationPointPosition.BottomRight1 |  |
| RotationPointPosition.BottomRight2 |  |
| RotationPointPosition.TopLeft1 |  |
| RotationPointPosition.TopLeft2 |  |
| RotationPointPosition.TopRight1 |  |
| RotationPointPosition.TopRight2 |  |
